SPREADER BAR
The SPREADER BAR is disgned to keep your lift arms the proper distance apart.  This model adjusts from 26" to 29".  The other advantge provided by the SPREADER BAR is that it will also keep your EZ-HITCH from falling over to the side.

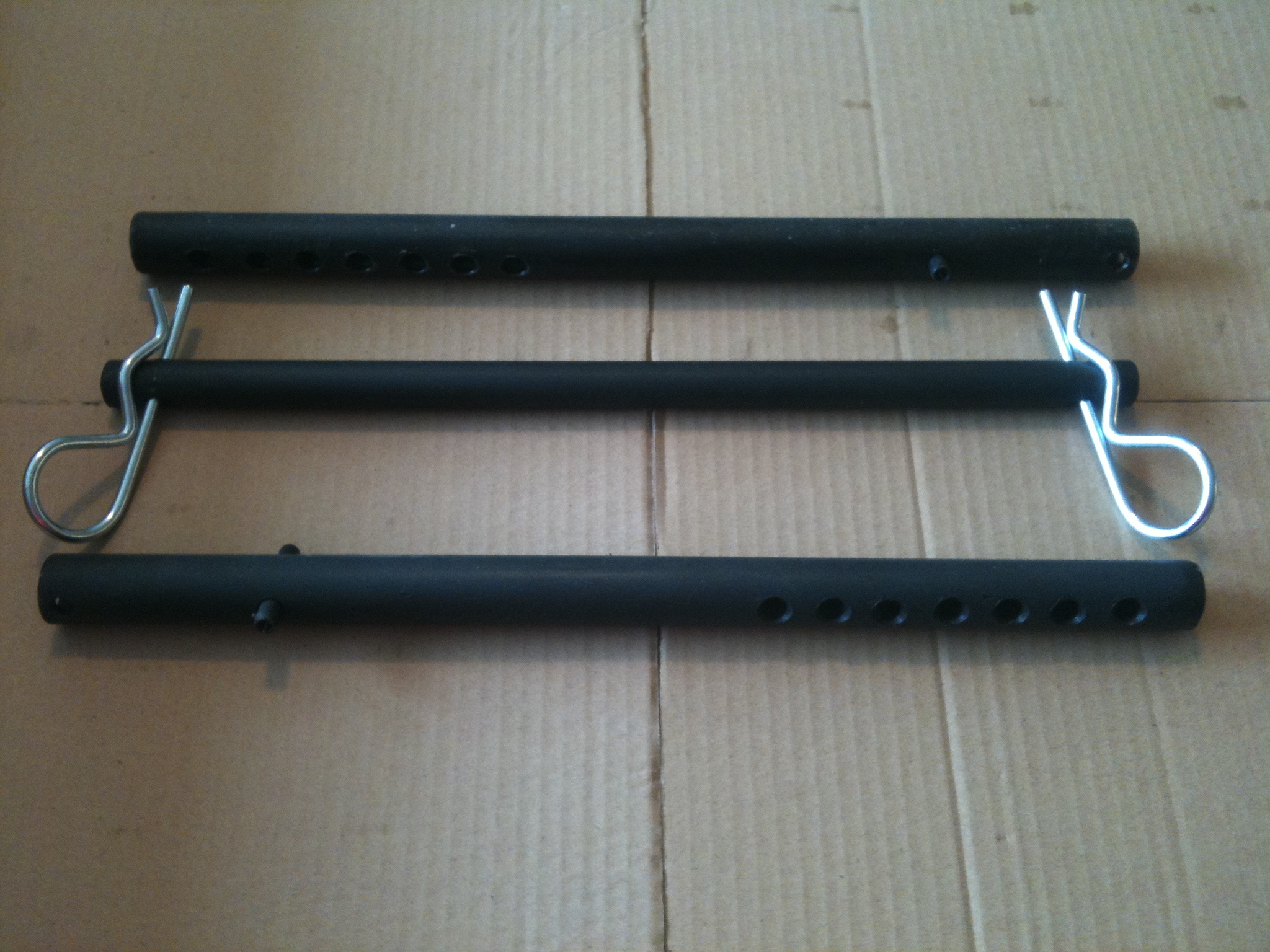

This bar is fabricated from 3/4" tubing and 5/8" solid.  The ends telescope which allows for the adjustment.


Spreader Bar Instructions



Assembly:

To assemble the Spreader Bar simply slide the two tubes over the solid center piece. Assembly is now complete.

Set Up:

First adjust the Spreader Bar to the approximate width needed for your implements. Now, with the EZ-HITCH already on the lift arm, slide each end of the Spreader Bar to the 7/8” holes in the EZ-HITCH. Secure the Spreader Bar using the cotter pins which are provided. Now make the final adjustment for width using the two hairpins and the correct holes. After completing the Spreader Bar set up tighten the outside stabilizers which run from the lift arms to the tractors rear axel or frame. This will help keep everything in place.

Inspection:

It is recommended that you check the Spreader Bar before using the tractor. If you are ever unsure if the Spreader Bar is damaged, remove it and don’t use it until it has been repaired.


Item #SB - 001


Price $30.00
